FL57BLS-60JB
產品中心 正齒輪箱

FL57BLS-60JB

57mm無刷電機配60mm正齒輪箱
選件:
  • FL57BLS-60JB

    編碼器

  • FL57BLS-60JB

    齒輪箱

  • FL57BLS-60JB

    接插件

  • FL57BLS-60JB

    剎車

齒輪箱參數(Spur Gearbox Specifications)

減速比(Ratio)357.51012.5152530507590100120150
減速級數(Number Of gear trains)234
額定轉矩(Nominal torque)5N.m
極限轉矩(Ultimate torque)10N.m
效率(Efficiency)0.810.730.66



正齒輪箱無刷直流電機參數(Spur Geared BLDC Motor Specifications)：

減速比(Ratio)357.51012.5152530507590100120
FL57BLS01-60JB額定轉矩(Rated torque) (N.m)0.260.440.660.891.111.3322.445.46.57.268.7

額定轉速(Rated speed) (RPM)13338005334003202661601338053444033

極限轉矩(Ultimate torque) (N.m)0.781.321.982.673.333.9967.210



FL57BLS02-60JB額定轉矩(Rated torque) (N.m)0.540.891.331.782.222.6744.88------------

額定轉速(Rated speed) (RPM)133380053340032026616013380------------

極限轉矩(Ultimate torque) (N.m)1.622.673.995.346.66810

------------
FL57BLS03-60JB額定轉矩(Rated torque) (N.m)0.81.3322.673.34467.22---------------

額定轉速(Rated speed) (RPM)1333800533400320266160133---------------

極限轉矩(Ultimate torque) (N.m)2.43.996810


---------------
FL57BLS04-60JB額定轉矩(Rated torque) (N.m)1.061.852.673.564.455.3489.6---------------

額定轉速(Rated speed) (RPM)1333800533400320266160133---------------

極限轉矩(Ultimate torque) (N.m)3.185.55810



---------------



減速比(Ratio)L2(mm)L1(mm)
FL57BLS01-60JBFL57BLS02-60JBFL57BLS03-60JBFL57BLS04-60JB
3---1559799911932
25---15059799911940

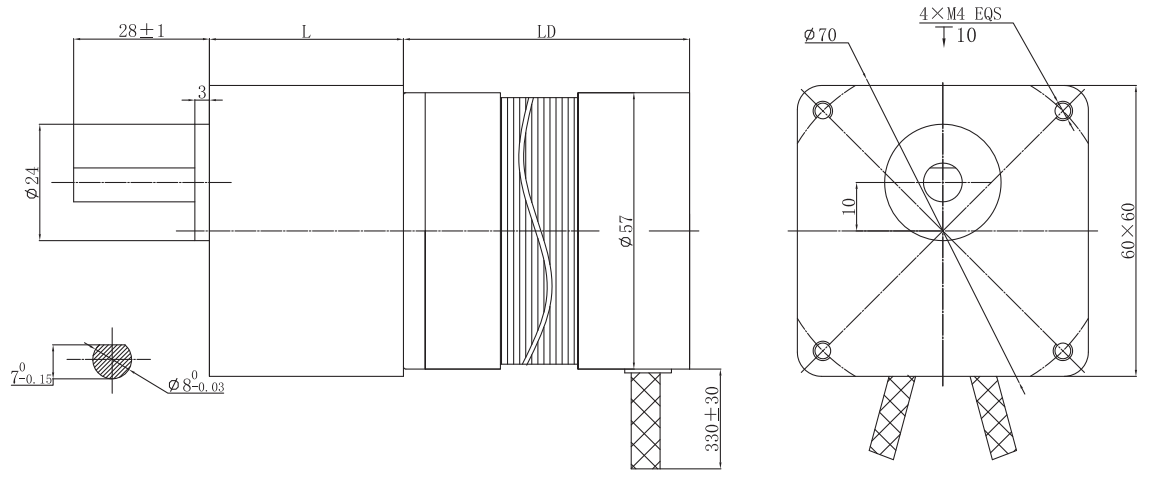

電機尺寸
